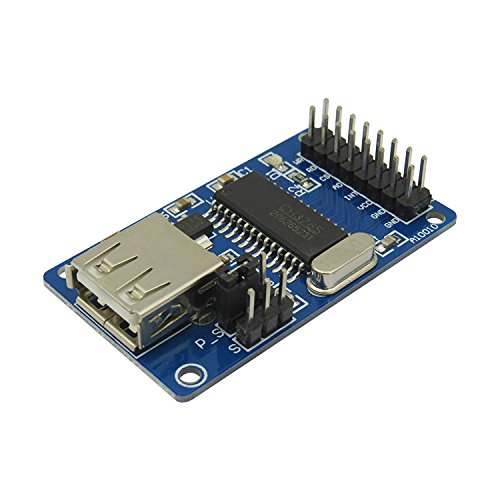

1 Piece CH376S USB Module U Disk Read/Write Module USB Main Interface Module USB Module

Description

If you need more details,please contact us. CH376S USB module U disk read / write module USB main interface module USB moduleProduct Features:1, CH376 is a USB bus common interface chip, with 8-bit data bus and read, write, chip select control line and interrupt output, you can easily mount to the microcontroller / DSP / MCU / MPU controller on the system bus The In the USB host mode, CH376 also provides a serial communication mode, through the serial input, serial output and interrupt output and microcontroller / DSP / MCU / MPU, etc. connected.2,2x8 connector, easy to articulate with the MCU3, according to the jumper selection, can work in parallel or serial mode4, USB status indicator5, onboard 3.3V LDO 1117, the maximum 800mA currentThe 6,5V power supply is powered by the target board7,12MHZ crystalShipping list:CH376 U disk module x 1
