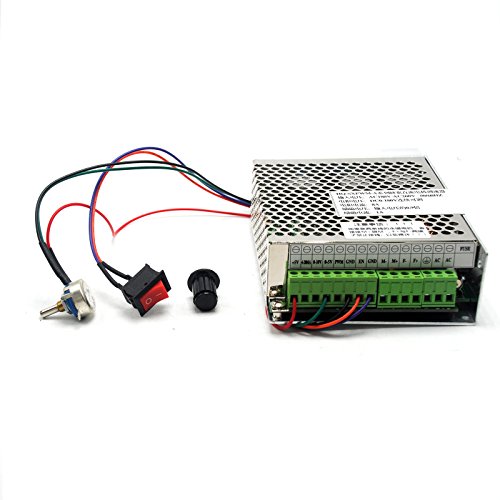

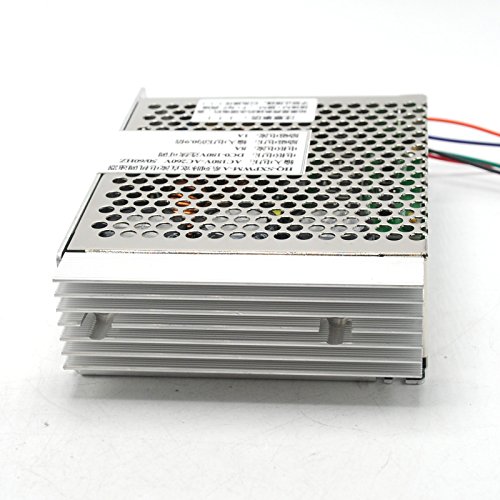

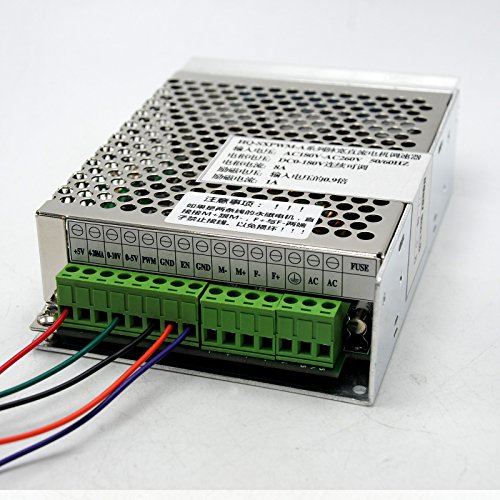

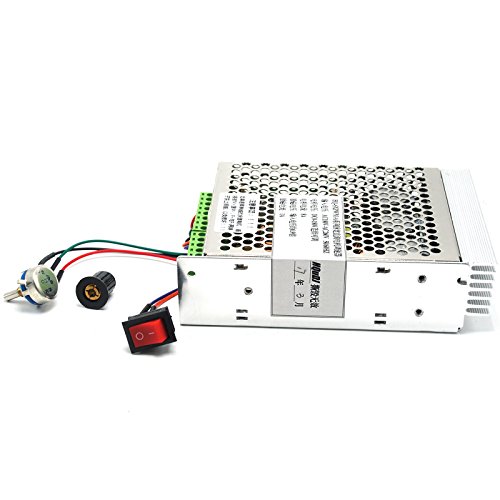

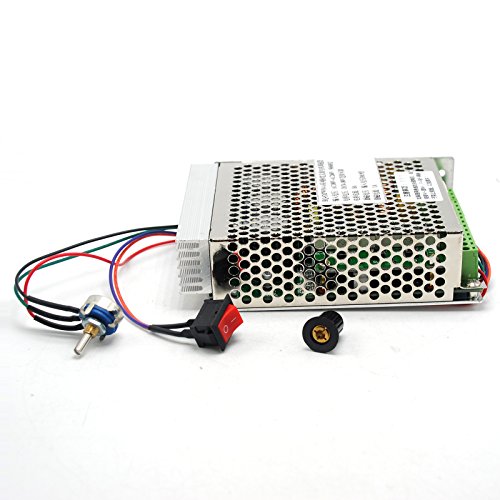

PWM DC Motor Speed Controller Driver AC90V-260V Input DC90V Output 8A
Thumbnail 1Thumbnail 2Thumbnail 3Thumbnail 4Thumbnail 5

PWM DC Motor Speed Controller Driver AC90V-260V Input DC90V Output 8A

Product ID: 87861731
Secure Transaction
Frequently Bought Together

Description

  • arrival time : 7-12workdays(Standard delivery)
  • the input power supply (VAC): AC90-260V 50 / 60Hz (for global voltage)
  • the output armature voltage range (VDC): DC90V
  • the output armature current range (A): 8A (0.1A-10A can be arbitrarily set) If the current is too big need to increase the heat
  • the output excitation current range (A): 1A
  • ›See more product details

PWM DC Motor Speed Controller Driver AC90V-260V Input DC90V Output 8A Features 1. the input power supply (VAC): AC90-260V 50 / 60Hz (for global voltage) 2.the output armature voltage range (VDC): DC90V 3.the output armature current range (A): 8A (0.1A-10A can be arbitrarily set) If the current is too big need to increase the heat 4.the output excitation voltage range (VDC): 100/200 (default full-bridge rectifier, which is 0.9 times the input voltage) 5. the output excitation current range (A): 1A 6. the working frequency: 16 KHz 7.given signal mode (V / mA): default potentiometer, 0-5V, 0-10V, 4-20mA, PWM, touchtone 8.enable control mode (EN): switch 9.soft start (acceleration time adjustment range) (S): 0-10S (default 2 seconds) 10.soft stop (deceleration time adjustment range) (S): 0-10S (default 2 seconds) 11.double loop PI regulation (voltage and current) control is more reliable 12.IR torque compensation range: 0-100% (default 0) 13.overcurrent range: 0 setpoint (default 8A) 14.overcurrent mode: stop output and indication (display code E1) 15.short-circuit protection: stop output and indication (display code E0) 16.overheat protection: power tube temperature exceeds 100 ° off the output and the indication (display code E2) 17.built-in digital display module can display real-time operating voltage with current 18.Dimensions: Length 140mm × 98mm × height 38mm width 19.Connection: terminal type (convenient) Package: 1pcs PWM DC Motor Speed Controller Driver AC90V-260V Input DC90V Output 8A
